Trowels

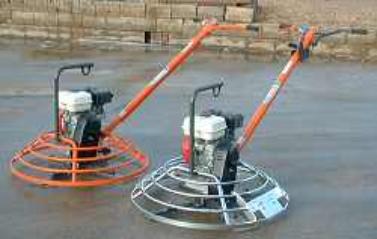

Belle Pro 900

Reliable, designed for continuous use on large floors
Advanced drive belt technology gives constant power
Two year warranty on gearboxes
Accurate screw-adjusted pitch control
Engine cut-out, stops the trowel safely
Minimum effort required to hold the 'dead man' safety lever
Complete with a set of blades for immediate on-site working.
Trowelling Speed 65-155 rmp

Pro 900 features:
Honda 5.5hp engine
Dimensions 992 x 1020 x 2100 mm
Weight 85 kg
Pro 900
$1,895.00
Available at
Hilltop Tool Rental
CRT 48-31V-E Ride-on Trowel
WACKER's easy to operate ride-on power trowels offer accurate and highly productive floating
and finishing for large concrete surfaces and super flat floors. Plus a unique variable clutch
provides proper torque and speed range to match concrete conditions, without mechanical
adjustments.

Description Imperial
Length x width x height 100 x 55 x 52.3 in
Blade size (l x w) finish 18 x 6 in
Operating weight 1,165 lb
Shipping weight (including packaging) 1,335 lb
Shipping size 108 x 60 x 44 in
Troweling width (non-overlapping) 97 in
Troweling width (overlapping) 99 in
Troweling area (nonoverlapping)  32 ft2
Troweling area (overlapping)  34 ft2
Maximum rotor speed 25-150 rpm
Pitch range  0-25°
Engine Type Vanguard liquid- cooled, 4-cycle, three cylinder, gasoline engine with electric start
Operating speed  4,000 rpm
Displacement  58 in3
Horsepower  31 hp
Fuel consumption  2.75 US gal/h
Fuel tank capacity  6.5 US gal

Specifications may change due to continuous product development.
$11,995.00
2007 model
Only 2 Available
New in Crate
Model B46H90 Trowel

4-blade, 46", Honda GX270, 60-130 RPM
·  46-inch (1170mm) guard ring diameter
·  Trowel covered by 1-year limited warranty
·  Front access panel provides quick access to trowel arms and blades
·  Center mount lifting bale included
·  Spider and thrust collar assembly design simplifies routine maintenance

·  Gearbox features top quality components & large oil capacity for years of
trouble-free performance
·  Optimally balanced for smooth finishing
·  Standard (knob type) pitch control handle

Unit Specifications
Clutch Type Centrifugal                       No. of Blades 4
Ring Diameter 46 in 1168.4 mm          Rotor Speed 60-130 RPM

Dimensions & Weights
Overall Length 75 in 1910 mm            Overall Width 46 in 1170 mm
Overall Height 41 in 1044 mm             Operating Weight 242 lb 110 kg
Shipping Weight 292 lb 132 kg

Engine Specifications Engine Make/Model
Start Method Recoil                            Engine Power 8 HP 6 kW
Engine RPM 3600                               Fuel Type Gasoline
$2,583.20
Model J36H90H  Trowel

4-blade, 36", Honda GX270, 90-155 RPM
Our popular mid-size trowel for the professional finisher. Reliability and
performance are trademarks of this industry proven trowel.
·  36-inch (915 mm) guard ring diameter
·   Rotor speed of 30-155 RM for high speed finishing applications; optional
low speed panning kit available (60-130 RPM)
·  Trowel covered by 1-year limited warranty
·  Front access panel provides quick access to trowel arms and blades
·  Center mount lifting bale included
·  Spider and thrust collar assembly design simplifies routine maintenance
·  Gearbox features top quality components & large oil capacity for years of
trouble-free performance
·  Optimally balanced for smooth finishing
·  With QuickPitch handle

Unit Specifications
Clutch Type Centrifugal                             No. of Blades 4
Ring Diameter 36 in 914.4 mm                  Rotor Speed 90-155 RPM

Dimensions & Weights
Overall Length 70 in 1789 mm                  Overall Width 36 in 915 mm
Overall Height 41 in 1044 mm                  Operating Weight 171 lb 77 kg
Shipping Weight 211 lb 96 kg
$2,341.40
Model CA4HM Trowel

4-blade, 24", Honda GX120, 70-130 RPM, Manual Clutch
Folding QuickPitch handle included with CA4HM
This compact design is ideal for finishing edges and around risers. The powerful
Honda GX 120 engine, manual clutch and folding Quick-Pitch handle make this the
professional finishers choice.
•Only 24 inches (610 mm) in diameter making it great for finishing tight spaces and
around obstructions
•QuickPitch handle provides simple and fast blade control
•Folding handle design simplifies transport and reduces storage space
•QuickPitch handle provides simple and fast blade control
•Rotating guard ring allows finishing tight to the wall without marking or marring
•Center mount lifting bale is standard

Unit Specifications
Clutch Type Manual                           No. of Blades 4
Ring Diameter 24 in 609.6 mm           Rotor Speed 70-130 RPM
Handle Options Quick-Pitch Handle Included

Dimensions & Weights
Overall Length 61 in 1555 mm           Overall Width 24 in 610 mm
Overall Height 36.25 in 921 mm         Operating Weight 125 lb 57 kg
Shipping Weight 145 lb 56 kg

Engine Specifications
Start Method Recoil                            Engine Power 3.5 HP 2.6 kW
Engine RPM 3600                               Fuel Type Gasoline
$2,316.60
