Ridgid Pipe Threader
Available at
Hilltop Tool Rental

Click on Model Numbers for Product Specifications.



Click on Models for Product Specifications.


8090 Pipe Threading Machine

Features complete interchangeability with the Model 300 dies
and die heads. This portable and compact, high-
performance threading machine has a self-opening die head
and through the die head oiling. Completely equipped to cut,
thread and ream.
Features:
For 1/2" to 2" pipe, 110/120 V, single phase 700W series motor,
average noise level: 85db, maximum amperage under load: 15.3,
no load RPM: 39, 3/4 hp, 50/60Hz

Includes:
1/2"–2" die head, two sets of NPT dies: 1/2"–3/4" and 1"–2", foot
switch, 4 legs.
Shipping weight   186 lbs. (84.5kg)
Net weight   166 lbs. (75.5kg)
THREE YEAR WARRANTY, INCLUDING ELECTRIC MOTORS.

                                         $125.00 per day

6790 Pipe Threading Machine

The 6790 features a self-opening die head, with through die head oiling.
Ultimate accuracy with quick changes between pipe sizes, producing
quality threads. The 6790 offers adjustable thread length, three-stage
oil filtration system, and a sturdy three flute reamer that covers the
entire 1/2"–4" range. The 6790 is a three speed machine that is
powered by a durable condenser motor, with an extremely low noise
level. Completely equipped to cut, thread, and ream.
Features:
For 1/2" to 4" pipe, 110V/120V or 220V/230V, single phase 1KW condenser
motor, average noise level: 72db, maximum amperage under load: 18.5 no load
RPM: 15/27/48, 1 hp, 50/60Hz
Includes:
Two die heads: 1/2"–2" and 2 1/2"–4", three sets of NPT dies: 1/2"–3/4", 1"–2"
and 2 1/2"–4", spare cutter wheel, foot switch, 4 legs and built-in tool tray.
Optional:
1/4"–3/8" NPT, 3/4"–4" beveling and grooving, 5/16"–2" UNC bolt, and 1/2"–4"
NPSM
Shipping weight   409 lbs. (186kg)
Net weight   326 lbs. (148kg)
THREE YEAR WARRANTY, INCLUDING ELECTRIC MOTORS.

                                                           $195.00 per day

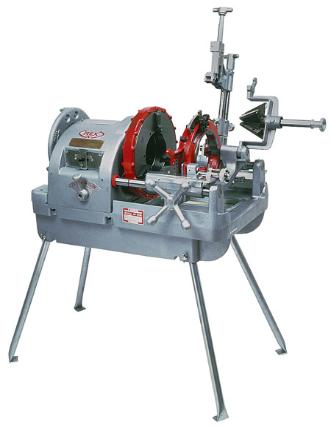

6590 Pipe Threading Machine
This machine has self opening notch type die heads with through
die head oiling. These die heads offer accuracy and quick changes
between pipe sizes, while providing quality threads. The 6590 is
totally gear driven and powered by a condenser motor, producing
extremely low noise levels. Quiet operation permits use in
hospitals, factories, and in other locations where noise can be a
problem. Completely equipped to cut, thread, and ream.
Features:

For 2 1/2" to 6" pipe, 110/120V or 220V/230V, single phase .75KW
condenser motor, average noise level: 76db, maximum amperage under
load: 14.5, no load RPM: 6.1/20.2, 1 hp, 50/60Hz
Includes:
Two die heads: 2 1/2"–4" and 5"–6", two sets of NPT dies: 2 1/2"–4", and
5"–6", foot switch, 4 legs and Blade-Type Cutter.
Optional:
2 1/2"–6" beveling and grooving
Shipping weight   532 lbs. (242kg)
Net weight   451 lbs. (206kg)
THREE YEAR WARRANTY, INCLUDING ELECTRIC MOTORS.

                                                      $295.00 per day
7991Sidekick II Pipe Threading Machine

The Wheeler-Rex Model 7991 is a full-featured
threading machine for 1/4" to 1" pipe. Featuring front
and rear chucks, an auto-open auto-oiling notch-
type die head, safety auto shut off, larger carriage &
cutter handles and a unique one blade reamer.
Model 7991 Features:
• Auto open notch die head
• Front and rear chucks
•Auto-oiling die head
• Large scrap tray
• Weighs only 58 pounds

                                       $95.00 per day
