Air Compressors
Available at
Hilltop Tool Rental
Air Compressors
Available at
Hilltop Tool Rental
5715K17
1-1/2 HP 9 Gallon Tank Electric Compressor

PUMP DESCRIPTION :
Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated,
Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy
Connecting Rods with Automotive-Style Inserts, Multi-Finned 11" Flywheel, Oil Sight
Gauge
MOTOR DESCRIPTION :
1.5 HP, 1755 RPM, Open Drip Proof, 115/230V – 60 HZ, Ball Bearings, Overload
Protection w/Manual Reset
STANDARD EQUIPMENT :
Pressure Gauge, 0-200 in 5 lb. Graduations, Square D Pressure Switch w/Unloader,
Accessory Support Clip, Intake Filter w/Silencer & Replaceable Element, Air-Cooled
Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

PUMP OIL CAPACITY  34 Ounces
REED VALVE SYSTEM :- Standard
AUTOMOTIVE STYLE INSERTS :- Standard
TANK CAPACITY :- 9 gallon
L x W x H :46 x 19 x 28

  $899.95

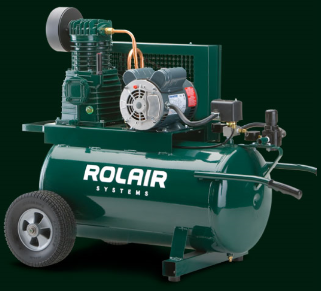

5520K17A
1-1/2 HP 20 Gallon Tank Electric Compressor

PUMP DESCRIPTION :
Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated,
Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy
Connecting Rods with Automotive-Style Inserts, Multi-Finned 11" Flywheel, Oil Sight
Gauge
MOTOR DESCRIPTION :
1.5 HP, 1755 RPM, Open Drip Proof, 115/230V – 60 HZ, Ball Bearings, Overload
Protection w/Manual Reset
STANDARD EQUIPMENT :
Pressure Gauge, 0-200 in 5 lb. Graduations, Square D Pressure Switch w/Unloader,
Accessory Support Clip, Intake Filter w/Silencer & Replaceable Element, Air-Cooled
Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

PUMP OIL CAPACITY  34 Ounces
REED VALVE SYSTEM :- Standard
AUTOMOTIVE STYLE INSERTS :- Standard
TANK CAPACITY :- 20 gallon
L x W x H :42 x 22 x 34

  $999.95

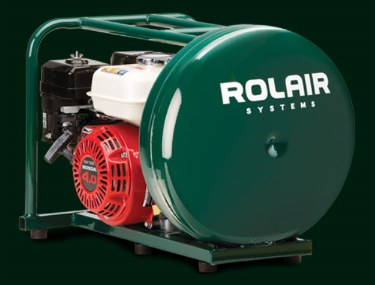

GD4000PV5H
4 HP 4.5 Gallon Tank Gas Compressor

PUMP DESCRIPTION :
ROLAIR Quality, Heavy-Duty, Cast-Iron Cylinder, Single Stage, Ball Bearings, Metal
Filter/Silencer with Replaceable Element, Stainless Steel Reed Valves, and Splash
Lubrication To Ensure Longer Pump Life
MOTOR DESCRIPTION :
4 HP Honda, Cast-Iron Cylinder Sleeve, Overhead Valves, On/Off Switch, Dual Element
Air Cleaner, Electronic Ignition, Low Oil Control
STANDARD EQUIPMENT :
Regulator w/Air Line Pressure Gauge, Universal Quick Disconnect w/Plug, 4 oz.
Crankcase Pre-filled with Oil, 110/135 PSI Operating Pressure, Automatic Engine
Throttle for Economy and Long Service Life, Factory Tested, Safety Relief Valve

PUMP OIL CAPACITY :- 4 Ounces
REED VALVE SYSTEM :- Standard
NUMBER OF CYLINDERS :- 1
TANK CAPACITY :- 4.5 Gallons
L x W x H :- 22 x 16 x 16
SHIPPING WEIGHT :- 72 lbs.


  $899.95

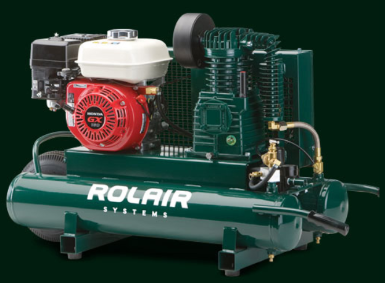

4090HK17
5.5 HP 9 Gallon Tank Gas Compressor

PUMP DESCRIPTION :
Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated,
Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy
Connecting Rods with Automotive-Style Inserts, Multi-Finned 11" Flywheel, Oil Sight
Gauge
ENGINE DESCRIPTION :
5.5 HP, Honda 4 Cycle, Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve,
Overheard Valves, Retractable Starter, On/Off Switch, Splash Lubricated, Low Oil
Shutdown
STANDARD EQUIPMENT :
Pressure Gauge, 0-200 in 5 lb. Graduations, Automatic Pilot Valve Operation, Industrial
Flexible Discharge Hose, Automatic Idle Control for Economy and Long Service Life,
Intake Filter w/Silencer & Replaceable Element, Schmidt Belt Tightening Device,
Air-Cooled Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

Horse Pwer - 5.5                                        Displaceed @ 90 PSI - 13.1 CFM
Delivery @ 90 PSI - 9.3 CFM                     Pump RPM - 1040 RPM
Pump Oil Capacity - 34 Ounces                Reed Valve System:- Standard
TANK CAPACITY :- 9 Gallons                   L x W x H :-46 x 19 x 28
SHIPPING WEIGHT :-174 lbs.


  $999.95

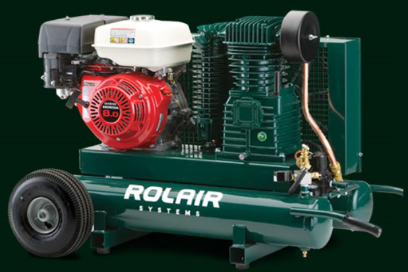

7722HK28
9 HP 9 Gallon Tank Gas Compressor

PUMP DESCRIPTION :
Heavy-Duty, Two Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated,
Cast Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy
Connecting Rods with Automotive-Style Inserts, Multi-Finned 15.16" Flywheel, Oil Sight
Gauge
ENGINE DESCRIPTION :
8 HP, Honda 4 Cycle, Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve,
Overheard Valves, Retractable Starter, On/Off Switch, Splash Lubricated, Low Oil
Shutdown
STANDARD EQUIPMENT :
Pressure Gauge, 0-300 in 5 lb. Graduations, Automatic Pilot Valve Operation, Industrial
Flexible Discharge Hose, Automatic Idle Control for Economy and Long Service Life,
Intake Filter w/Silencer & Replaceable Element, Schmidt Belt Tightening Device,
Air-Cooled Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

Horse Pwer - 9                                           Displaceed @ 90 PSI - 20.3 CFM
Delivery @ 90 PSI - 17 CFM                     Pump RPM - 1100 RPM
Pump Oil Capacity - 61 Ounces                Reed Valve System:- Standard
TANK CAPACITY :- 9 Gallons                   L x W x H :-46 x 28 x 30
SHIPPING WEIGHT :-276 lbs.


  $1,695.95

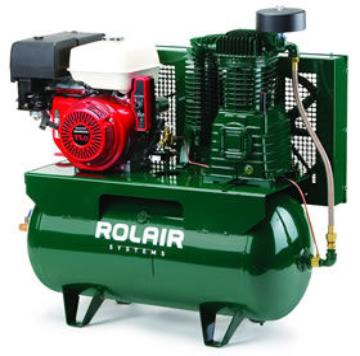

13GR30HK30
13 HP 30 Gallon Tank Gas Compressor

PUMP DESCRIPTION :
Heavy-Duty, Two Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated,
Cast Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy
Connecting Rods with Automotive-Style Inserts, Multi-Finned 15.16" Flywheel, Oil Sight
Gauge
ENGINE DESCRIPTION :
8 HP, Honda 4 Cycle, Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve,
Overheard Valves, Retractable Starter, On/Off Switch, Splash Lubricated, Low Oil
Shutdown
STANDARD EQUIPMENT :
Pressure Gauge, 0-300 in 5 lb. Graduations, Automatic Pilot Valve Operation, Industrial
Flexible Discharge Hose, Automatic Idle Control for Economy and Long Service Life,
Intake Filter w/Silencer & Replaceable Element, Schmidt Belt Tightening Device,
Air-Cooled Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

Horse Pwer - 13                                        Displaceed @ 175 PSI - 29.51 CFM
Delivery @ 175 PSI - 23.02 CFM             Pump RPM - 1100 RPM
TANK CAPACITY :- 30 Gallons                 L x W x H :-42 x 22 x 48
SHIPPING WEIGHT :-367 lbs.


  $2,495.95

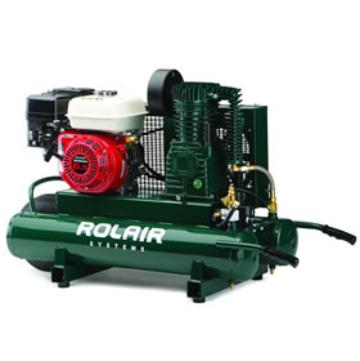

6590HK18-001
6.5-HP 9-Gallon Gas Wheelbarrow Air Compressor
w/ Honda Engine

Engine
6.5HP Honda GX with recoil start and low oil  shut off.
Pump
Single-Stage Aluminum pump with cast iron sleeve 13.1 CFM at
90 PSI. Max 135 PSI. Belt drive with oil sight glass.
Tank
Tank Size9 Gallons
Horizontal 9 gallon tank with 1/4" outlet.
Overview
Product Weight179 Pounds
Product Length46 Inches
Product Width19 Inches
Product Height28 Inches

                                                                            $1,199.95
20GR60HK60Truck Mounted, gas powered Air
Compressor
ABOUT THE PUMP
Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase
for Faster Heat Dissipation, Ball Bearings, Splash Lubricated,
Bearing Inserts on Connecting Rods, Swedish Lammelar Reed
Valves, Oil Sight Gauge, Low RPMs to Ensure Long Life and
Trouble-Free Performance.

20HP, 60 Gallon, 41.0 @ 175 PSI displaced, 33.7 @ 175 PSI
delivered, 64" long, 30" wide, 50" heigh, and weighs 585 lb.

STANDARD EQUIPMENT
Automatic Engine Idle Control for Economy and Long Service Life
Schmidt Belt Tightening Device
Automatic Pilot Valve Operation
Pressure Gauge 0-300 in 5 lb. Graduations
Safety Relief Valve ASME Approved
Long Lasting Flexible Brass Discharge Hose
Totally Enclosed Steel Belt Guard

                                                                          $4,995.95

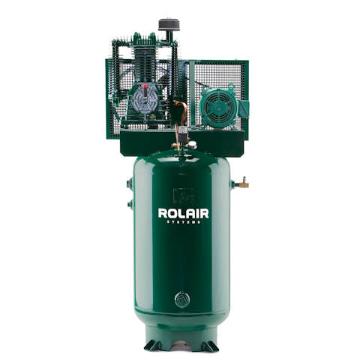

Vertical Electric Compressors

ABOUT THE PUMP
Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash
Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPMs to
Ensure Long Life and Trouble-Free Performance
STANDARD EQUIPMENT
Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
Automatic Unloading Device for Loadless Starts
Heavy-Duty Brass Shut-Off Valve
Pressure Gauge, 0-300 PSI in 5 lb. Graduations
Safety Relief Valve - ASME Approved
Multiple V-Belt Drive
Intake Filter/Silencer with Replaceable Element
Totally Enclosed Steel Belt Guard

H75180K30        7.5        Single        80 Gallons, Horizontal        1740        32.3 @ 175 PSI        23.5 @
175 PSI        67"        20"        49"        572 lb.
                                $2,195.95

H75180K30        7.5        Single        80 Gallons, Horizontal        1740        32.3 @ 175 PSI
23.5 @ 175 PSI        67"        20"        49"        572 lb.        $1,995.95
