Water Pumps & Wagon
MMD Equipment Pumps

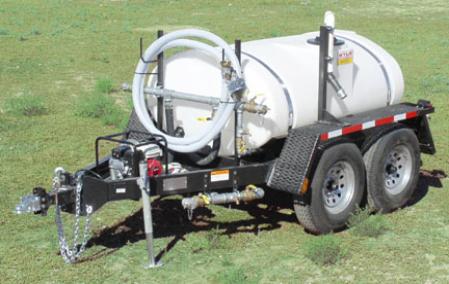

500 Gallon Water Wagon
General Specifications

Tank                          500 gallon elliptical
Frame                       6" channel iron
Axles                        Tandem slipper spring
Wheels                      16 x 6
Tires                         7.50 x 16 LT
Wheel track              72 inches Height
Height                       62" (w/ fill kit 70")
Length                       165"
Width                        84" (with fenders)
Weight                      1,740 lbs
Capacity                     7,000 lbs
Hitch                          2"
Available at
Hilltop Tool Rental
BJM Pumps
R400-115
Electric Submersible Pump

Horse Power                0.5
Volt                              115
Rated Amps                  1.45
Discharge Connection   2" NPT-M
Max Head                     35'
Max GPM                       66
Power Cord                  16/3; 33'
SV400-115
Electric Submersible Solids Handing Pump

Horse Power                0.5
Volt                              115/230, 1ph-60 Hz
Motor RPM                    3450
Discharge Connection   2" NPT-M
Max Head                     22'
Max GPM                       59
Power Cord                  16/3; 33'
BTR-1500S

Size                          3"
Maximum Head          71'
Maximum Delivery     8,240 gph
Horsepower               2 hp
Voltage                      120/240V
Solid Size                   .31"
Auto Shutdown           Thermal Cutoff
Multiquip Pumps                $250.00 / day

MQ62TDD
                                                                       Hoses $35.00 ea./day

The choice of the professional contractor heavy-duty high
volume trash pump for you the demanding job.


  • Trailer mounted unit with maximum head of 100 feet (30.5 meters)
  • Diesel powered 29-hp Deutz engine
  • Pumping capacity of 1,083 gallons (4,100 liters) per minute
  • Low oil shutdown
  • 28-gallon (106 liters) fuel tank capacity
  • Running time of approximately 12 hours
Model
NPH-2T
NPH-3T
NPH-4t
Suc & Del Diameters
2 x 2 in
3 x 3 in
4 x 4 in
Solid Size
1 in
1.5 in
2 in
Maximum Delivery
11,900 gph
21,600 gph
34,200 gph
Suction Lift
26 ft
26 ft
26 ft
Maximum Head
90 ft
96 ft
91 ft
Engine Model
Honda GX-160
Honda GX-240
Honda GX-340
Horsepower
5.5 HP
8 HP
11 hp
Fuel Type
Gas/Unmixed
Gas/unmixed
Gas/Unmixed
Fuel Capacity
.95 gal
1.59 gal
1.72 gal
Fuel Consumption
.29 gph
.5 gph
.65 gph
Low Oil Sensor
Yes
Yes
Yes
Rental / Day
$85.00
$95.00
$125.00
Tax
7.01
7.83
10.31
Total / day
$92.01
$102.83
$135.31
Additiona Hoses / day
each
$10.00
$15.00
$20.00
Rental includes
2 hoses
$60.00 / day
Rental includes one hose.
Additional hoses $10.00 /
day each.
.$65.00 / day
Rental includes one
hose. Additional hoses
$15.00 / day each.
$185.00 / day
Multiquip 6", ActivPrime Pump

$250.00 / day

Hoses $35.00 ea./day

AP6TV - The Multiquip ActivPrime Automatic priming
pump series is the perfect choice to tackle demanding
dewatering challenges such as sewage by-pass, general
construction, emergency response, mining operations, and
industrial applications.
