Air Compressors
Available at
Hilltop Tool Rental
Air Compressors
Available at
Hilltop Tool Rental

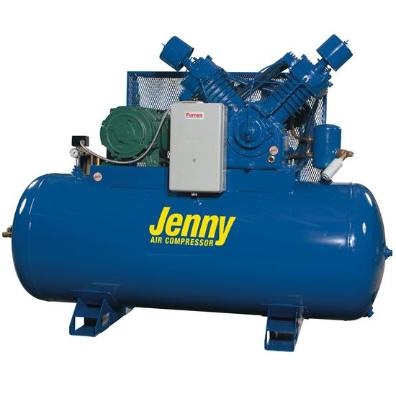

Two Stage Stationary Air Compressor, Three Phase 25HP, 120 Gallon

25 HP, Heavy-duty single or two stage cast iron compressor pump - Made in Somerset, PA USA, Splash
lubricated, Belt driven with a large flywheel for extra cooling and easier start-up, Each unit is filled with
Jenny Ultimate Blue Synthetic Compressor Pump Oil. Directional air shroud for reduced pump temperatures,
Totally enclosed heavy-duty belt guard, Tanks are powder coated and ASME certified, 60 gallon tanks and
larger are ASME National Board certified, Protectively mounted fittings, Manual tank drain(s), Large canister
intake filter with replaceable filter elements, Special unloading valves to assist in motor starting, Tank gauge,
Pressure relief safety valve, Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or
145-175 PSI (two stage), Magnetic starter is included on all 5HP and larger units, Industrial/Commercial
grade UL Listed electric motor, Thermal overload motor protection, Alternator and magnetic starter are
standard on all duplex models

Model Number: T25B-120                 Manufacturer: Jenny Products
Tank Size: 120 Gallons                    Motor Specifications
Running HP: 25 HP                          Voltage: 200, 230, 460, or 575 Volts
Phase: Three                                  Pump Specifications
CFM @ 175 PSI: 83                          Max Pressure: 175 PSI
Weight: 1750 lbs.                            Dimensions: 69"L x 34"W x 65"H
Warranty: 2 Year Limited

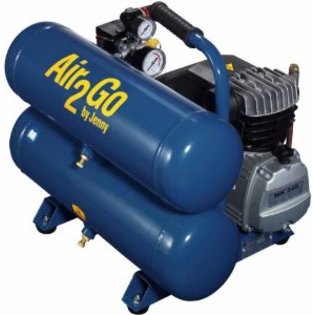

2-HP 4.8-Gallon Tank Electric Hand Carry Compressor

Jenny Air compressors are lightweight, extremely portable, and feature anti vibration
feet. Jenny portable air compressors are durable, and last through rough use through
features such as an aluminum head for better heat dissipation, a powder coated heavy
duty steel tank and frame assembly, a forced ventilation cooling system to keep the
unit cool during usage, and a cast iron cylinder for an extended pump life. Jenny air
compressors also include an air line regulator and two gauges for line and tank
pressure, a Pressure relief safety valve, and protectively mounted fittings. This
machine features a Chinese pump, in contrast to the Italian Pump featured in the

Horse Power - 2HP
Electric or Gas - Electric
Tank Capacity - 4.8 Gallons
CFM @ 100 PSI - 4.0
CFM @ 125 PSI - 3.4
Voltage - 115
Cord Length - 6'
