Air Compressors
Available at
Hilltop Tool Rental
Heavy-Duty 2 HP 17 Gallon Electric Wheeled Portable
Compressor with Dual Voltage and Dual Control

Features
8.4 CFM delivered @ 100 PSI for quick recovery
Twin cylinder, cast iron, oil lubricated pump
2 HP motor provides increased performance
Dual wheels make maneuvering easier on the worksite
Dual control feature allows start/stop or constant run operation
Dual voltage feature allows easy switching from 120 to 240 volt operation
Ball valve drain allows for quick and thorough tank draining
ASME coded 17 gallon OSHA recognized tank
Specifications
Drive Belt Drive               Horsepower 2 HP
Tank Size 17 gal             Power Supply 2 pole induction motor
CFM @100 PSI 8.4 CFM    Pump Speed 1,070 rpm
Tool Length 43 "             Tool Width 20.25 "
Tool Height 29.75 "         Tool Weight 201 lbs
Shipping Weight 256 lbs
Includes
DEWALT Synthetic Compressor Oil
3/8" NPT pressure regulator
$1,199.00
Air Compressors
Available at
Hilltop Tool Rental
Heavy-Duty 8 HP 8 Gallon Gas Wheeled Portable
Compressor

Features
16.2 CFM delivered @ 100 PSI for high volume applications
Quad cylinder, cast iron, oil lubricated pump with Emglo's 50 years of proven durability
and reliability
8 HP Honda OHV GX gas engine provides proven reliability and durability
Low oil shut off provides greater engine protection
Low profile design for easy maneuverability
Ball valve drain allows for quick and thorough tank draining
Fully-Pneumatic tire improves worksite mobility
Automatic idle control for reduced fuel consumption
Low oil shut off provides greater engine protection
Ball valve drain allows for quick and thorough tank draining
Specifications
Drive Belt Drive                          Horsepower 8 HP
Tank Size 8 gal                          Pump Speed 890 rpm
Power Supply Honda gas OHV GX engine
CFM @100 PSI 16.2 CFM             Tool Length 43 "
Tool Height 27.75"                     Tool Width "
Tool Weight 213 lbs                   Shipping Weight 269 lbs
Includes
DEWALT Synthetic Compressor Oil
3/8" NPT pressure regulator
$1,495.00

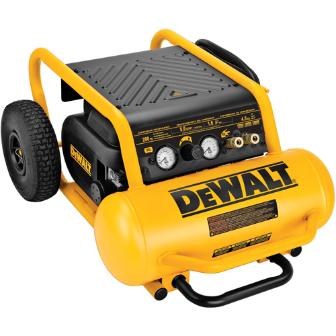

D55146R Reconditioned 1.6 HP Continuous, 200 PSI, 4.5 Gallon Compressor

Features
•8200 PSI max tank storage pressure provides a user with 80% more usable air than the industry leader
• 5.0 SCFM @ 90 PSI allows the compressor to recover quickly after its initial tank charge is exhausted
• Vertical stand feature and collapsible handle allows a user to save space by transporting or storing the
compressor in a vertical position
• 78 dBA* operational noise level for a quieter work environment (* tested per ISO3477)
• 10" non-flat foam tires allow for easy transportation around the jobsite
• EHP® Efficient high pressure technology allows for longer pump and motor life
• Oil free, maintenance free pump for convenient use
• Efficient high pressure motor allows the compressor to be run with an extension cord (12 Ga. or heavier, 50 ft.
or less) due to consistent amp draw requirement of the compressor
• High flow coupler allows for maximum nailer performance
• Metal console panel provides a display area as well as protects the gauges, couplers, and regulator
• High flow coupler allows for maximum nailer performance
• 2 inch gauges allow for an easy to read surface

Specifications
Drive - Belt Drive                           Horsepower - 1.6HP
Tank Size - 4.5gal                        Power Supply - 120 volts
CFM @ 100 PSI - 4.9CFM               CFM @ 175 PSI  - n/a; 3.0@200PSICFM
CFM @ 90 PSI - 5.0CFM                 CFM @ 40 PSI - 6.5; 5.9@60PSICFM
Pump Speed = 1,750rpm               Tool Length - 33.5"
Tool Width  - 23"                          Tool Height  - 15"
Tool Weight - 83lbs                       Shipping Weight - 90lbs
Power Supply - 120 volts


          $289.95

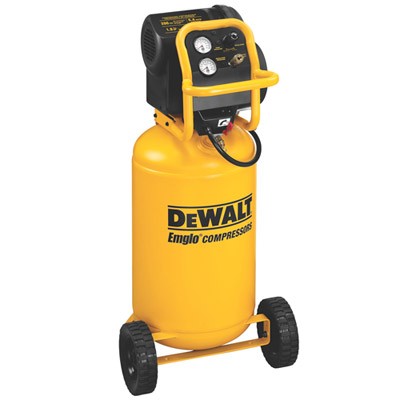

Compressor
Features
5.0 SCFM @ 90 PSI allows for quick compressor recovery times
•200 PSI max tank storage pressure allows for longer air tool run times
•78 dBA (tested per ISO3744) operational noise level for a quieter work environment
•EHP® Efficient high pressure technology delivers exceptional air-tool runtimes
•Oil free, maintenance free pump for convenient use
•Efficient high pressure motor allows the compressor to be run with an extension cord (12 Ga. or heavier, 50 ft.
or less) due to consistent amp draw requirements of the compressor
•Compact design allows for the compressor to be easily moved, transported, and stored
•Robust dual purpose handle provides additional protection to the compressor along with serving as a hose
wrap
•Metal console panel protects the gauges, coupler, and regulator
•High flow air regulator allows for maximum air tool run time
•High flow coupler allows for maximum air tool run time
•2 inch gauges allow for an easy to read surface
•Wide track, semi-pneumatic tires allow for additional stability, easy movement, and no tire maintenance

Specifications
Drive: Belt Drive                                •HP: 1.6HP
•Tank Size: 15gal                             •Power Supply: 120 volts
•CFM @ 100 PSI: 5.0CFM                   •Pump Speed: 1,750rpm
•Tool Length: 24.50"                         •Tool Width: 22.00"
•Tool Height: 44.75"
